#6-1 Sequential Circuit Design - Finite State Machine (Mealy-circuit)

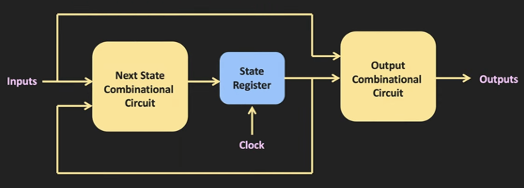

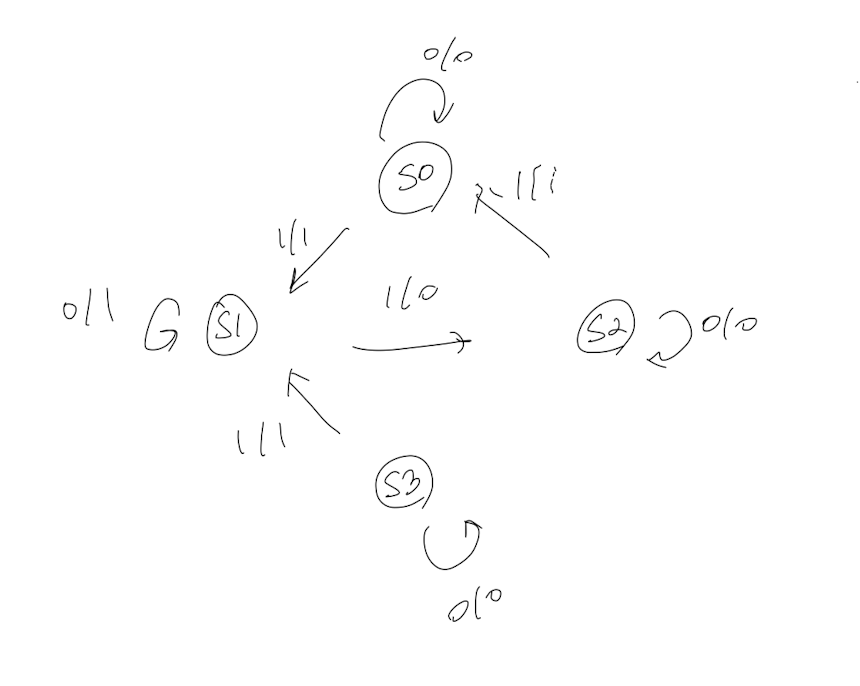

*Mealy State Machine Design

`timescale 1ns/1ns

module MealyStateM(Reset, Ck, X, OC, outState, Z);

input Reset, Ck, X;
input OC; //output buffer control
output Z;
wire Z;
output [1:0] outState;
wire [1:0] outState;

localparam [1:0] S0=2'b00, S1=2'b01, S2=2'b10, S3=2'b11;

reg [1:0] preState, nextState;

always @ (posedge Ck) //State Register
begin //sequential
	if (Reset) //synchronous reset
		preState <= S0;
	else
		preState <= nextState;
end

assign outState = (OC) ? preState : 2'bZ;

assign Z = ( ((preState == S0) && (X == 1'b1)) || //Output Combination Circuit
		((preState == S1) && (X == 1'b0)) ||
		((preState == S2) && (X == 1'b1)) ||
		((preState == S3) && (X == 1'b1)) )
		? 1'b1 : 1'b0;

always @ (*) //NextState Combination Circuit
begin // combinatinal
	nextState = S0;
	case (preState)
		S0: if (!X) nextState = S0;
		    else nextState = S1;
		S1: if (!X) nextState = S1;
		    else nextState = S2;
		S2: if (!X) nextState = S2;
		    else nextState = S0;
		S3: if (!X) nextState = S3;
		    else nextState = S1;
		default: nextState = S0;
	endcase
end

endmodule



*Mealy State Machine_Tb

`timescale 1ns/1ns

module MealyStateM_Tb;

parameter tlimit = 400;
parameter ckPeriod = 7;

reg Reset = 1'b1, Ck = 1'b0, X=1'b0, OC = 1'b0;
wire [1:0] outState;
wire Z;

MealyStateM U(Reset, Ck, X, OC, outState, Z);

initial begin
           #10 Reset = 1'b0; OC = 1'b1;
end

initial #tlimit $stop;

always #ckPeriod Ck = ~Ck;
always #10 X = $random;

integer result;
always @(posedge Ck) begin
	   result = $fopen ("result.txt");
	   $fwrite (result, "time = %d, OC = %d, X = %d, ", $time, OC, X);
	   #2;
	   $fdisplay (result, "outState = %d, Z = %d", outState, Z);
end

endmodule

random X

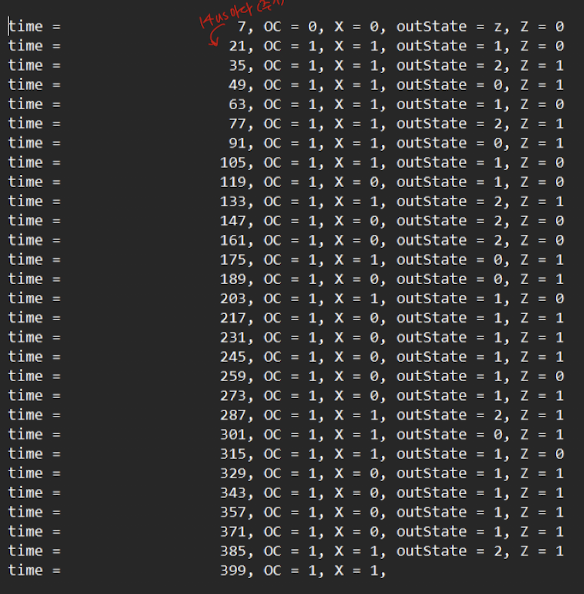

*Simulation result

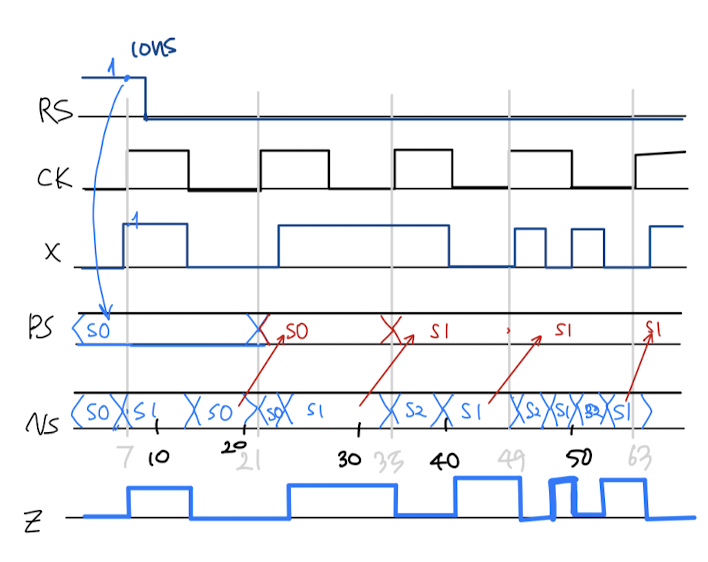

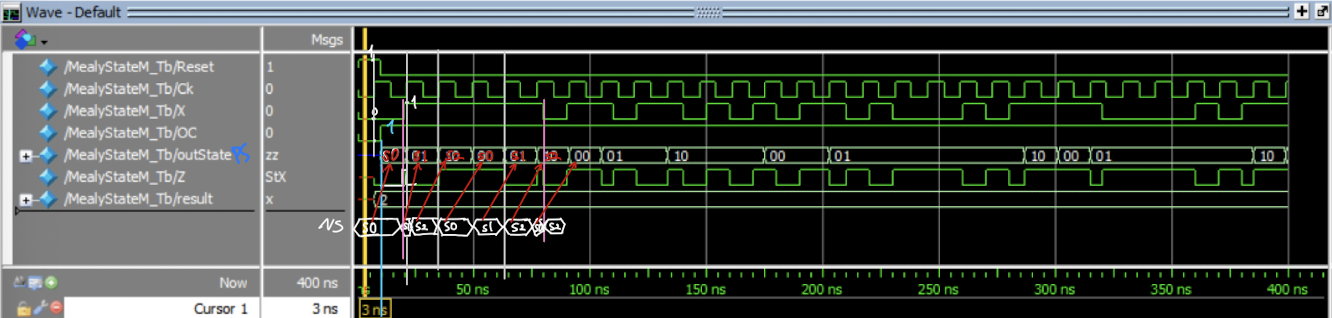

*Simulation result - Waveform



*Exercise

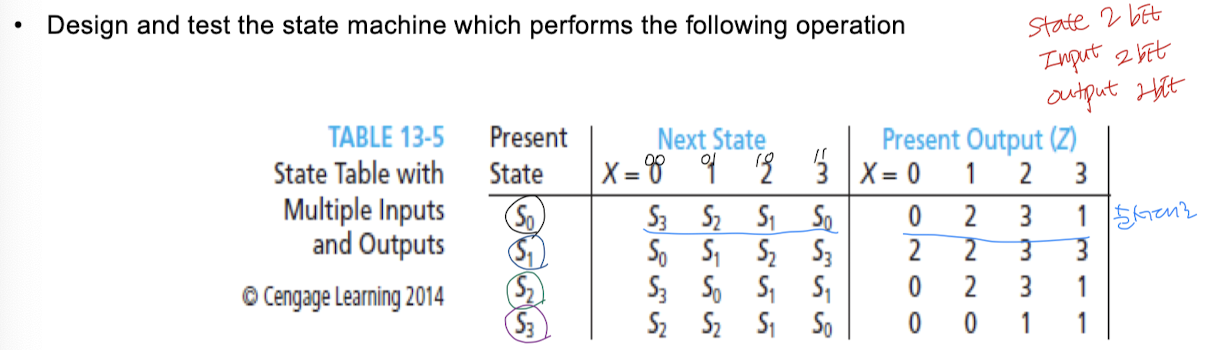

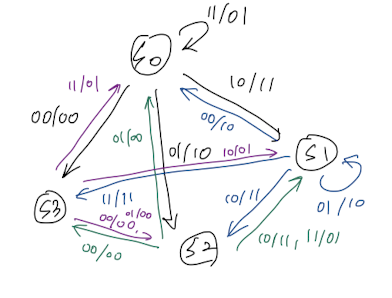

(1)Mealy State Machine Design

`timescale 1ns/1ns

module MealyStateM_EX(Reset, Ck, X, OC, outState, Z);
input Reset, Ck;
input [1:0] X;
input OC; //output buffer control
output [1:0] Z;
reg [1:0] Z;
output [1:0] outState;
wire [1:0] outState;

localparam [1:0] S0 = 2'b00, S1 = 2'b01, S2 = 2'b10, S3 = 2'b11;

reg [1:0] preState, nextState;

always @ (posedge Ck) begin //sequential
	if (Reset) //Synchronous Reset
		preState <= S0;
	else preState <= nextState;
end

assign outState = (OC) ? preState: 2'bZ;

always @(*) begin //combinational
	nextState = S0;
	case (preState)
		S0: case(X)
			2'b00: begin nextState = S3; Z = 2'b00; end
		        	2'b01: begin nextState = S2; Z = 2'b10; end
                        	2'b10: begin nextState = S1; Z = 2'b11; end
                        	2’b11: begin nextState = S0; Z = 2'b01; end
		    endcase
		S1: case(X)
			2'b00: begin nextState = S0; Z = 2'b10; end
		        	2'b01: begin nextState = S1; Z = 2'b10; end
                        	2'b10: begin nextState = S2; Z = 2'b11; end
                        	2’b11: begin nextState = S3; Z = 2'b11; end
		    endcase

		S2: case(X)
			2'b00: begin nextState = S3; Z = 2'b00; end
		        	2'b01: begin nextState = S0; Z = 2'b10; end
                       	2'b10: begin nextState = S1; Z = 2'b11; end
                        	2’b11: begin nextState = S1; Z = 2'b01; end
		    endcase

		S3: case(X)
			2'b00: begin nextState = S2; Z = 2'b00; end
		        	2'b01: begin nextState = S2; Z = 2'b00; end
                        	2'b10: begin nextState = S1; Z = 2'b01; end
                        	2’b11: begin nextState = S0; Z = 2'b01; end
		    endcase
		default: begin nextState = S0; Z = 2'b00; end
	endcase
end

endmodule



(2) Mealy State Machine_Tb

`timescale 1ns/1ns

module MealyStateM_EX_Tb;

parameter tlimit = 400;
parameter ckPeriod = 7;

reg Reset = 1'b1, Ck = 1'b0, OC = 1'b0;
reg [1:0] X = 2'b00;
wire [1:0] outState;
wire [1:0] Z;

MealyStateM_EX U(Reset, Ck, X, OC, outState, Z);

initial begin
           #10 Reset = 1'b0; OC = 1'b1;
end
initial #tlimit $stop;

always #ckPeriod Ck = ~Ck;
always @(negedge Ck) begin
	X = $random;
end

integer result;
always @(posedge Ck) begin
	   result = $fopen ("result2.txt");
           	   $fwrite (result, "time = %d, OC = %d, X = %d, ", $time, OC, X);
	   #2;
	   $fdisplay (result, "outState = %d, Z = %d", outState, Z);
end

endmodule

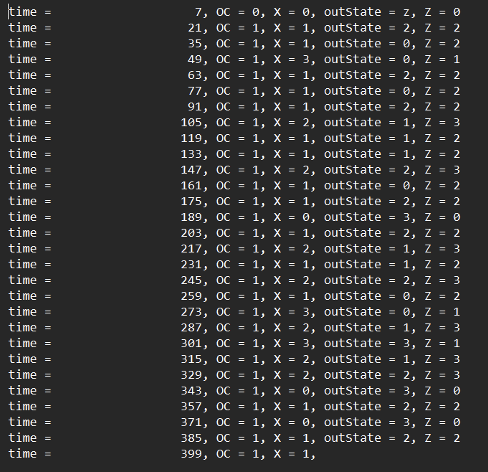

(3) Simulation result

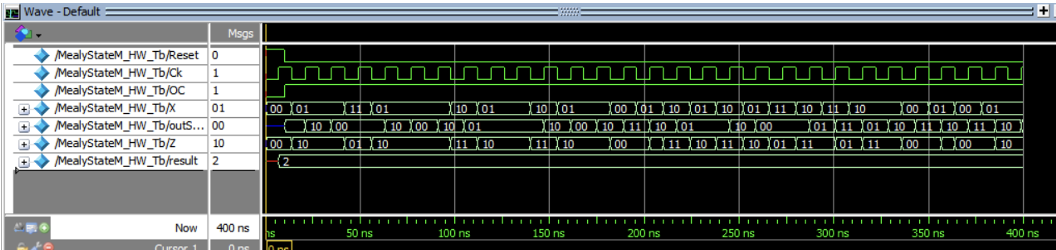

(4) Simulation result - Waveform
